Description

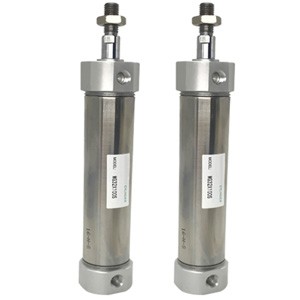

MG mini stainless steel pneumatic cylinder
| Bore size | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting type | MSG/MTG | Single acting | --- | ||||
| MG/MGD | Double acting | --- | |||||
| MGC/MGCD | Double acting with cushion | ||||||
| Fluid | Airlto be fitered by 40 μ m filter element) | ||||||
| Operating pressure | Double acting | 0.1~1.0MPa(15~ 145psi)(1.0~10.0bar) | |||||
| Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||
| Temperature °C | -20~70 | ||||||
| Speed range mm/s | Double acting: 30~800 Single acting: 50~800 | ||||||
| Stroke tolerance | 0~150 >150 | ||||||
| Cushion type | Adjustable cushion Bumper | Adjustable cushion | |||||
| Port size | Adjustable cushion | M5x0.8 | 1/8" | 1/4" | |||
| Bumper | 1/8* | --- | |||||
