Description

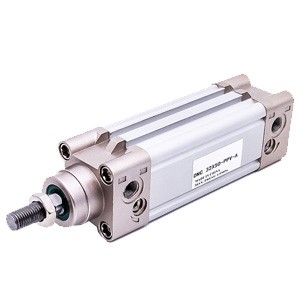

DNC ISO6431 standard cylinder pneumatic
Ordering code
DNC | 63×50 | PPV | A |
Serial code | Bore x stroke | None: no buffer | None: standard |
DNC： Basic model | PPV: with buffer | A: Built-in magnetic ring | |
HNC： axial foot | |||
FNC： front and rear flanges | |||
SNCB： Double ear base | |||
SNC： Single ear base |
Specifications
| Bore（mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action type | Double action | ||||||
| Working medium | Air (clean air filtered by 40μm) | ||||||
| Working pressure | 0.1～0.9Mpa(1～9kgf/㎝2) | ||||||
| Guarantee pressure resistance | 1.35Mpa(13.5kgf/cm2) | ||||||
| Working temperature range | ﹣5～70℃ | ||||||
| Buffer type | Adjustable buffer | ||||||
| Buffer stroke（mm) | 24 | 32 | |||||
| Connect tube size | 1/8＂ | 1/4＂ | 3/8＂ | 1/2＂ | |||
| Body material | Aluminum alloy | ||||||
