Description

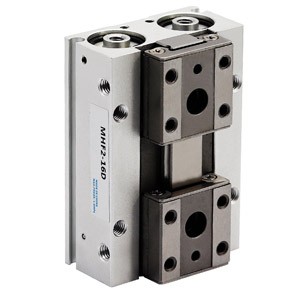

MHF2 Parallel Claw Finger Slide pneumatic cylinder
| Bore size(mm) | 8 | 12 | 16 | 20 | ||
| Action | Double acting | |||||
| Fluid | Air | |||||
| Operating pressure rang(Mpa) | 0.15-0.7 | 0.1-0.7 | ||||
| Ambient &fluid temperature | -10 ~60 degree(no freezing) | |||||
| Repeatability(mm) | -0.05 | |||||
| Max. operating frequency(c.p.m) | short:60 , long stroke120 | |||||
| Auto switch model | Contactless | 2wire | SW-M9B | |||
| 3 wire NPN | SW-M9N | |||||
