Description

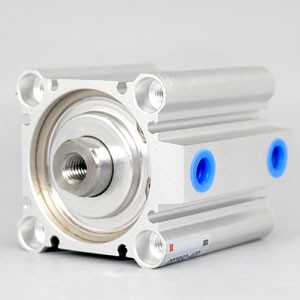

CQ2B Double Acting Air Piston Compact Pneumatic Cylinder
| Bore Size (Mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Port Size Rc(Pt) | M5x0.8 | 1/8 | 1/4 | 3/8 | ||||||
| Fluid | Filtered Clean Air | |||||||||
| Action | Double Acting/ Single Acting | |||||||||
| Proof Pressure (Mpa) | 1.5 | |||||||||
| Operating Pressure Range (Mpa) | 0.05~1.0 | |||||||||
| Ambient And Uid Temperature | -5~60℃(No Freezing) | |||||||||
| Piston Speed | 50~500 mm/s | |||||||||
| Cushion | Rubber Bumper | |||||||||
| *Lubrication | Not Required | |||||||||
| Bore Size | Standard Stroke (mm) | Middle Stroke | Auto Switch/ |
| (mm) | Range (mm) | Rail Mounting | |
| 12,16 | 5, 10, 15, 20, 25, 30 | 1~29 | D-z80k |
| 20,25 | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 | 1~49 | |
| 32,40 | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 | 1~99 | |
| 50,63,80,100 | 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 |
