Description

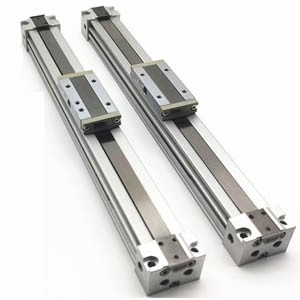

SHINYEE pneumatic cylinder MY1B Slide Mechanical Rodless dipole guide liner cylinder SMC type
| Bore size(mm) | 10 | 16 | 20 | 50 | 63 | 80 | 100 | |
| Fluid | Air | |||||||
| Action | Double Acting | |||||||
| Operating pressure range | 0.2to0.8Mpa | 0.15to0.8Mpa | 0.1to0.8Mpa | |||||
| Proof pressure | 1.2Mpa | |||||||
| Ambient and fluid temperature | 5~60℃ | |||||||
| Cushion | Rubber bumper | Air cushion | ||||||
| Stroke length tolerance | 1000 or less+1.8 0 | 2700or less+1.8 0 | ||||||
| 1001to3000 +2.8 0 | 2701to5000 +2.8 0 | |||||||
| Piping | Front/side port | M5*0.8 | RC3/8 | RC1/2 | ||||
| port size | Bottom port | - | ∅4 | ∅10 | ∅18 | |||
