Description

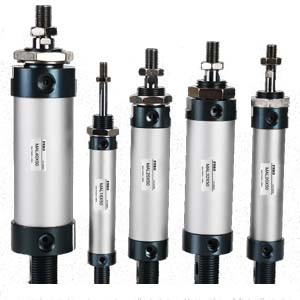

MAL aluminum alloy mini cylinder pneumatic
Ordering code
| MAL | CM | 32x50 | B | FA |
| - | - | |||
| Serial code | Back cover type | Inner bore*Stroke | Magnet code | Fixed type |
| MAL：Standard double acting | ||||
| Blank: Swing tail | Blank: no magnet | FA: front cover fixed | ||
| MALD: Double-axis double-acting type | CM: Round tail type | S: with magnet | FB: fixed rear cover | |
| MALJ: Double-axis adjustable double-acting type | U: Flat tail type | LB: Tripod |
| Bore size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting type | MSA/MTA | Single acting | - | |||||
| MA/MAD/MAJ | Double acting | - | ||||||
| MAR | - | Double acting | ||||||
| MAC/MACD/MACJ | - | Double acting with cushion | ||||||
| Fluid | Air(to be filtered by 40 um filter element) | |||||||
| Operating pressure | Double acting | 0.15~1.0MPa(22-~145psi)(1.5~10.0bar) | ||||||
| Single acting | 0.2~1.0MPa(28-~145psi)(2.0~10.0bar) | |||||||
| Proof pressure | 1. 5MPA(215psi)(15bar) | |||||||
| Temperature℃ | -20~70 | |||||||
| Speed range mm/s | Double acting:30~800 Single acting:50~800 | |||||||
| Stroke tolerance | 0~150 >150 | |||||||
| Cushion type | MAC/MACD/MACJ Series: Variable cushion; Other series: Bumper | |||||||
| Port size [Note 1] | M5*0.8 | 1/8" | 1/4" | |||||
| Series | I.D. (mm) | Thread | Port size | Standard stroke (mm) | Max. Stroke (mm) | Permissible stroke (mm) |
| MAL | 20 | M8*1.25 | PT1/8 | 25 50 75 80 100 125 150 160 175 200 250 300 | 500 | 800 |
| 25 | M10*1.25 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 800 | 1200 | ||
| 32 | 800 | 1200 | ||||
| 40 | M12*1.25 | 1200 | 1500 | |||
| MSAL | 20 | M8*1.25 | PT1/8 | 25 50 75 80 100 125 150 | 150 | - |
| 25 | M10*1.25 | 150 | - | |||
| 32 | 150 | - | ||||
| 40 | M12*1.25 | 150 | - | |||
| MTAL | 20 | M8*1.25 | PT1/8 | 25 50 75 80 100 | 100 | - |
| 25 | M10*1.25 | 100 | - | |||
| 32 | 100 | - | ||||
| 40 | M12*1.25 | 100 | - | |||
| MALDMALJ | 20 | M8*1.25 | PT1/8 | 25 50 75 80 100 125 150 160 175 200 | 200 | 300 |
| 25 | M10*1.25 | 25 50 75 80 100 125 150 160 175 200 250 | 250 | 300 | ||
| 32 | 250 | 300 | ||||
| 40 | M12*1.25 | PT1/4 | 250 | 300 |
