Description

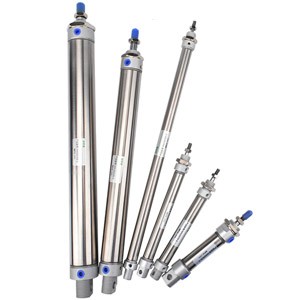

MA series stainless steel mini cylinder pneumatic
| Bore size (mm) | 16 | 20 | 25 | 32 | 40 50 63 |
| Action | Double acting type | ||||
| Fluid | Air(filtered through 40µ filter element) | ||||
| Operating pressure | 0.1~0.9 MPa(1~9kgf/cm²) | ||||
| Proof pressure | 1.35 MPa(13.5kgf/cm²) | ||||
| Ambient and fluid temperature | -5~70°C | ||||
| Cushion | Without cushion | ||||
| Port size | M5 | 1/8'' | |||
| Body material | Stainless steel | ||||
