Description

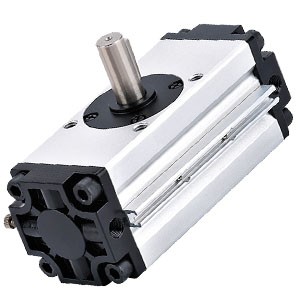

CRA1 Rotary rack swing cylinder pneumatic
Cylinder bore size mm: 32, 50, 63, 80, 100
Working medium: Air
Acting mode: double acting
Working pressure range:0.1- 1Mpa
Fluid temperature: 0-60℃
Permissible swing angle: +40
Output torque(N.m): 1.9, 9.3, 17, 32, 74
No air buffer permissible kinetic energy(kgf.cm): 0.1, 0.51, 1.2, 1.6, 5.5
Air buffer permissible kinetic energy(kgf.cm): 10, 15, 20, 30
Swing time range(min/900)： 0.2-1, 0.2-2, 0.2-3, 0.2-4, 0.2-5
Port size: M5*0.8, 1/8, 1/4, 3/8
