Description

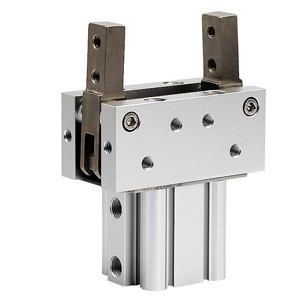

SHINYEE MHT2 small compact guide pneumatic Gripper Robot clamp finger Pneumatic cylinder
| Bore size | 32 | 40 | 50 | 63 |
| Action | Double acting | |||
| Fluid | Air | |||
| Operating pressure | 0.1 to 0.6 MPa | |||
| Ambient and fluid temperature | 5 to 60 °C | |||
| Lubrication | Not required | |||
| Finger opening angle(Total) | -3° to 28° | -3° to 27° | -2° to 23° | -2° to 23° |
