Description

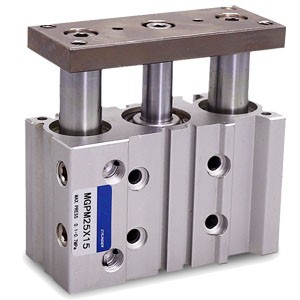

MGP series compact guide cylinder pneumatic
Cylinder bore size mm: 12, 16, 20, 25, 32, 40, 50, 63
Cylinder standard stroke mm: 10, 20, 30, 50, 75, 100, 125, 175, 200
Sensor switch: D-Z73
Fixed based of sensor switch: MA-16, MA-20, MA-25, MA-32, MA-40
CM: round tail
U: flat tail
S: with magnet
FA: front cover fixed front flange
LB: foot bracket
Acting mode: double acting
Working media: air
Working pressure range: 0.1-1Mpa
Temperature range: -10~60℃ no frozen
Piston speed: 50-1000mm/s
Buffering mode: both ends rubber buffer
Stroke tolerance mm: 0+1.5mm
Bearing type: slide bearing / ball bushing bearing
Slide bearing non rotating accuracy ℃: +/-0.04~0.08
Ball bushing bearing non rotating accuracy ℃: +/-0.05~0.1
Port size: M5, 1/8, 1/4, 3/8
