Description

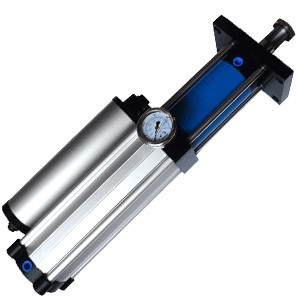

MPTF MPTS series air and liquid booster cylinder pneumatic
MPTF: fast type
MPTS: built in oil groove type
Bore size mm: 63, 80, 100, 125, 160
Overall stroke mm: 50, 100, 150, 200
Booster stroke mm: 5, 10, 15, 20
Output force Ton: 1, 3, 5, 10, 13, 15, 20
Acting mode: double acting
Working strength: 2-7kg/cm2
Circling oil: ISO Vg32
Working temperature: 5~60℃
Operating speed: 50-700mm/s
Guaranteed withstand pressure of oil cylinder: 300kg/cm
Guaranteed withstand pressure of air cylinder: 15kg/cm
Working frequency: more than 20 times per minute
Bore size mm: 50, 63, 80
Booster stroke mm: 5, 10, 15, 20
