Description

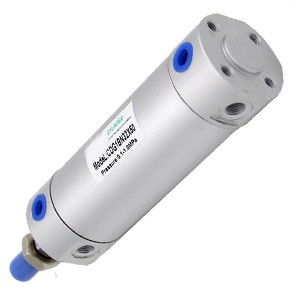

CG1 series light duty cylinder pneumatic
Cylinder bore size mm: 20, 25, 32, 40, 50, 63, 80, 100
Cylinder standard stroke mm: 20, 25, 50, 75, 100, 125, 150, 175, 200, 250, 300
Acting mode: double acting
Media: air
Working pressure: 0.05-0.99Mpa
Withstand test pressure: 1.5Mpa
Temperature range: 5~60℃
Piston speed: 50-1000mm/s
Port size: 1/8, 1/4, 3/8, 1/2
