Description

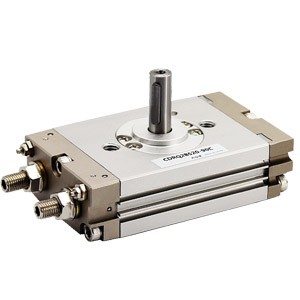

CRQ2 thin rack rotary cylinder pneumatic
Ordering code
| CRQ2B | S | 20 | - | 90 |
| Model | Axis | Bore size | Pendulum angle | |
| CRQ2B: Basic type | S:Single axis | 10 | 90: 80~180degree | |
| CDRQ2B: With magnet | W:Double axis | 15 | 180:170~190degree | |
| 20 | ||||
| 30 | ||||
| 40 |
| Bore size (mm) | 10 | 15 | 20 | 30 | 40 |
| Fluid | Air | ||||
| Action | Double acting | ||||
| Minimum operating pressure | 0.15 MPa | 0.1 MPa | |||
| Maximum operating pressure | 0.7 MPa | 1.0 Mpa | |||
| Ambient and fluid temperature | 0 to 60°C (No freezing) | ||||
| Cushion | Rubber bumper | None/Adjustable air cushion at both ends | |||
| Lubrication | Non-lube | ||||
| Output (N·m) | 0.3 | 0.75 | 1.8 | 3.1 | 5.3 |
| Auto Swith(Option) | Solide state switch(3-wire, 2-wire) | ||||
| Port Size | M5x0.8 | G1/8 | |||
| Note 1: Output under the operating pressure at 0.5 MPa. | |||||
