Description

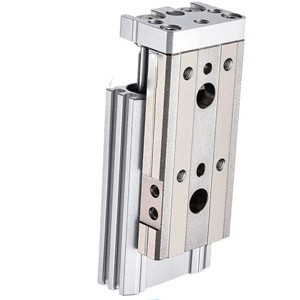

SHINYEE MXQ Air compact Mini Precision Linear Guide Pneumatic Double Acting slide cylinder
| Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
| Piping port size | M3 x 0.5 | M5 x 0.8 | Rc 1/8, NPT 1/8, G 1/8 | |||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Operating pressure | 0.15 to 0.7 MPa | |||||
| Proof pressure | 1.05 MPa | |||||
| Ambient and fluid temperature | -10 to 60°C | |||||
| Piston speed | 50 to 500 mm/s | |||||
| Cushion | Rubber bumper (Standard, With stroke adjuster) | |||||
| Shock absorber (Optional) | ||||||
| Auto switch (Optional) | 2-wire, 3-wire | |||||
| Stroke length tolerance | +1~0 mm | |||||
