Description

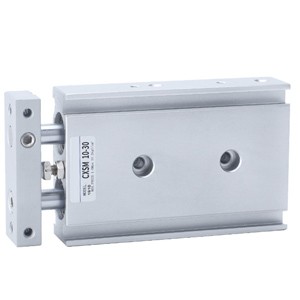

CXS series dual joint cylinder pneumatic
Model: CXS
Cylinder bore size mm: 4, 6, 8, 10
Fluid: air
Action: double acting
Max operating pressure: 0.05-0.7MPa
Operating piston speed: 30-800
Buffer: rubber buffer on two ends
Adjustable stroke range: 0-5mm
Bearing: slipping oil / ball bearing
Ambient & Fluid temperature: -10~+60℃
Port size: M5*0.8, 1/8
