Description

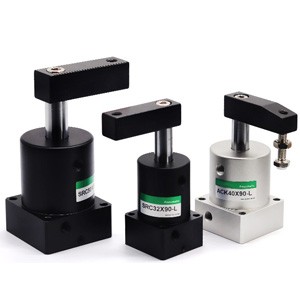

SRC ACK series rotating cylinder pneumatic

Model name: SRC, ACK

L: turn left (from right to left)

R: turn right (from left to right)

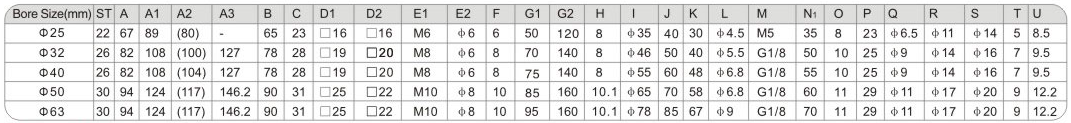

Cylinder bore size mm: 25, 32, 40, 50, 63

Media: air

Acting mode: double acting

Working pressure range: 1.5-9.5Mpa

Temperature range: 0~60℃

Working speed: 30-500mm per second

Rotary stroke mm: 11, 13, 15

Down stroke mm: 11, 13, 15

Rotation angle: 90⁰ can be customized 0⁰, 45⁰, 60⁰

Buffering: rubber cushion

Port size: M5*0.8
