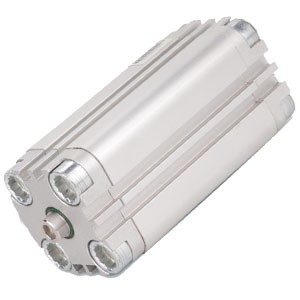

ADVU aluminum alloy compact cylinder
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Fluid | Air | ||||||||||
| Action | ADVU | Double acting, Single/Double rod | |||||||||
| AEVU/AEVUZ | Single acting, Single rod, Spring return/extend | ||||||||||
| Minimum operating pressure | Double Acting | 0.12 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
| Single Acting | 0.15 MPa | 0.13 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
| Maximum operating pressure | 1.0 MPa | ||||||||||
| Proof pressure | 1.5 MPa | ||||||||||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||||||
| Cushion | Rubber bumper | ||||||||||
| Lubrication | Non-lube | ||||||||||
| Piston rod dia. | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | ||||
| Rod end thread | Female thread | M3x0.5 | M4x0.7 | M5x0.8 | M6x1.0 | M8x1.25 | M10x1.25 | M12x1.25 | |||
| Cushion | Rubber bumper | ||||||||||
