Description

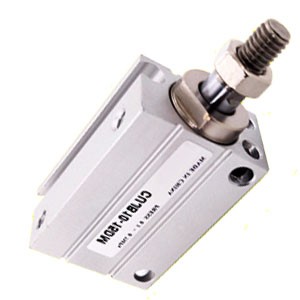

CUJ series small free mounting cylinder pneumatic
Model: CUJ, CDUJ, CUJB, CDUJS, CUJS, CDUJB
Cylinder bore size mm: 4, 6, 8, 10
Fluid: air
Action: double acting / single action(spring return)
Proof pressure: 1.05MPa(0.7kgf/cm2)
Max operating pressure: 0.7MPa(7.1kgf/cm2)
Double action min operating pressure MPa(kfg/cm2): 0.15(1.5, 0.1(1.0)
Single action min operating pressure MPa(kfg/cm2): 0.35(3.5), 0.3(3.1), 0.2(2.1)
Ambient & Fluid temperature: -10~+60℃
Installation: free multi faceted installation
Port size: M3*0.5
