Description

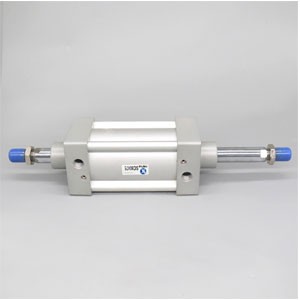

SID double acting piston rod adjustable stroke pneumatic cylinders
| Bore diameter（mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
| Acting type | Double punch | |||||||||
| Working medium | Air (filtered by 40μm filter element) | |||||||||
| Fixed type | SI series | Basic type FA FB CA CB LB TC TC-M-1 TC--2 | ||||||||
| SID series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
| SIJ series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
| Working pressure range | 0.1～0.9MPa(14～128Psi) | |||||||||
| Guarantee pressure resistance | 1.5Mpa(213Psi) | |||||||||
| Working temperature ℃ | ﹣5～70 | |||||||||
| working speed range mm/s | SI series：50～800 Outer series：30﹣800 | |||||||||
| Buffer type | Adjustable buffer | |||||||||
| Buffer stroke mm | 24 | 32 | ||||||||
| Connect tube size | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | |||||
