Description

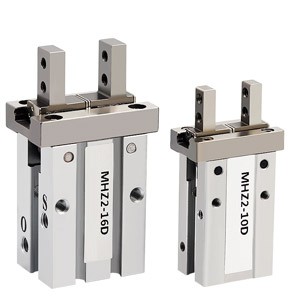

SHINYEE Pneumatic MHZ2 MHZL2 Air Gripper finger Claw clamping cylinder
| Bore(mm) | 6 | 10 | 16 | 20 | 25 | 32 | 40 | |
| Working Medium | Filtered compressed Air | |||||||
| Motion Pattern | Double Action Type, Single Acting Type, | |||||||
| Max. Operating Pressure | Double-acting Type | 0.15~0.7Mpa | 0.2~0.7Mpa | 0.1~0.7Mpa | ||||
| Single-acting Type | 0.3~0.7Mpa | 0.35~0.7Mpa | 0.25~0.7Mpa | |||||
| Repeat accuracy(mm) | ±0.01 | ±0.02 | ||||||
| Max operating frequency(c.p.m) | 180 | 60 | ||||||
| Operating Temperature | -10~60°C | |||||||
| Lubrication | No-lube | |||||||
| Cylinder built-in magnet ring | With(standard) | |||||||
| Joint Pipe Bore | M3×0.5 | M5×0.8 | ||||||
