Description

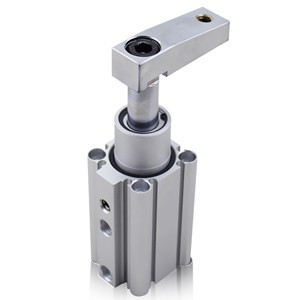

MK / MKB series back rotation clamp cylinder pneumatic
Cylinder bore size mm: 12,16, 20, 25, 32, 40, 50, 63
Working media: air
Action type: double acting
Working pressure range: 0.1-1Mpa
Temperature range: magnetic switch -10~60℃; non magnetic switch: -10~70℃
Piston speed: 50/200mm/s
Buffering: Rubber buffer
Back rotation angle: 900+/-100
Back rotation direction: L/R
Back rotation distance mm: 7.5, 9.5, 15, 19
Clamping distance mm: 10, 20, 30, 50
Allowed bending torque N.m: 1, 3.8, 7, 13, 27, 47, 107, 182
Clamping force N: 40, 75, 100, 185, 300, 525, 825, 1400
Port size: M5*0.8, 1/8, 1/4
