Description

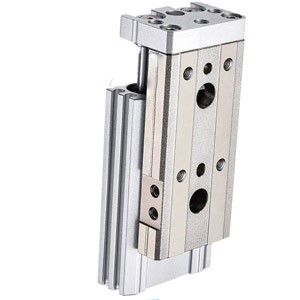

SHINYEE MXS HLS Air compact Mini Precision Linear Guide Pneumatic Double Acting slide cylinder
| Boresize | 6 | 8 | 12 | 16 | 20 | 25 |
| Port size | M3X0.5 | M5X0.8 | 1/8" | |||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Working pressure | 0.15 to 0.7MPa | |||||
| proof pressure | 1.05MPa | |||||
| Working temperature | ~10~60 degree | |||||
| Piston speed | 50 to 500mm/s | |||||
| Cushion | Rubber bumper(standard: with stroke adjuster) shock absorber(option) | |||||
