Description

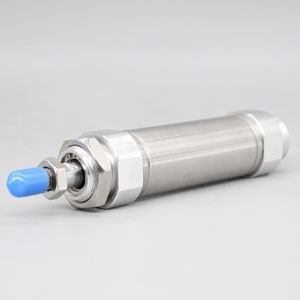

CDM2B stainless steel pneumatic cylinder
| Model | 20 | 25 | 32 | 40 | |
| Fluid | Air | ||||
| Action | CM2 | Double Acting, Single/Double Rod | |||
| CM2-S/T | Single Acting, Single Rod, Spring Return/Extend | ||||
| Min.operating pressure | Double acting | 0.05Mpa | |||
| Spring return | 0.18Mpa | ||||
| Spring extend | 0.23Mpa | ||||
| Max. operating pressure | 1Mpa | ||||
| Proof Pressure | 1.35Mpa | ||||
| Fluid temperature | -10-70 centigrade(without magnetic switch) | ||||
| -10~60 centigrade(with magnetic switch) | |||||
| Cushion | Double acting | Rubber bumper | |||
| Adjustable air cushion at both ends | |||||
| Single acting | Rubber bumper | ||||
| Lubrication | No need | ||||
| Piston rod diameter | 8 mm | 10 mm | 12 mm | 14 mm | |
| Rod end thread | M8x1.25 | M10 x 1.25 | M14 x 1.5 | ||
| Port size | G1/8'' | G1/4'' | |||
| Auto switch | CS1-F CS1-U | ||||
| Bore size(mm) | Standard stroke(mm) | Maximum manufacturable stroke |
| 20 | 25,50,75,100,125,150,200,250,300 | 1000 |
| 25 | 1500 | |
| 32 | 2000 | |
| 40 |
