Description

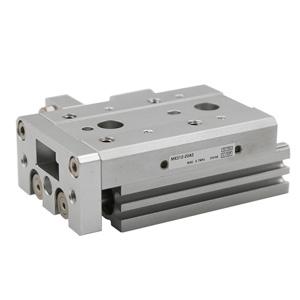

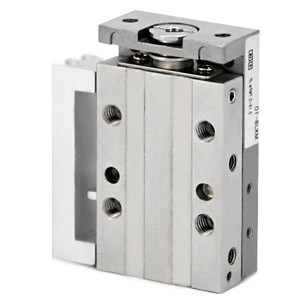

SHINYEE MXJ Air compact Mini Precision Linear Guide Pneumatic Double Acting slide cylinder
| Bore size (mm) | 6 | 10 | 16 | 20 |
| Fluid | Air | |||
| Action | Double acting | |||
| Operating pressure | 0.15 to 0.7 Mpa | |||
| Proof pressure | 1.05 MPa | |||
| Ambient and fluid temperature | -20 to 80°C (No freezing) | |||
| Cushion | Rubber bumper | |||
| Lubrication | Non-lube | |||
| Port size | M5x0.8 | |||
