Description

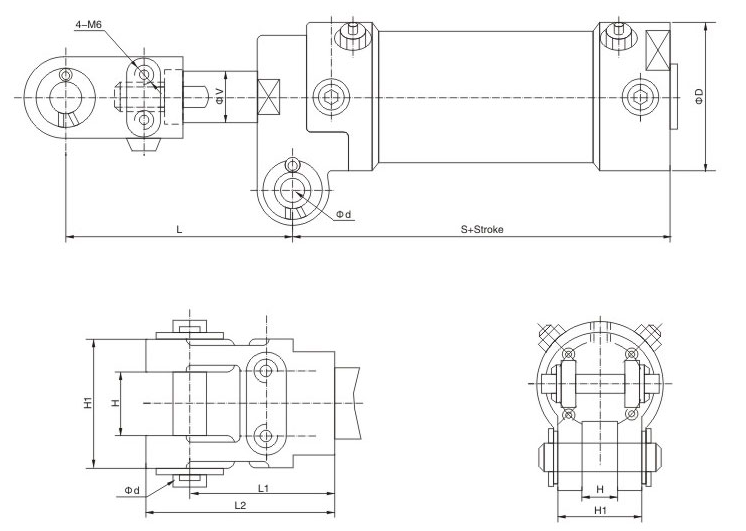

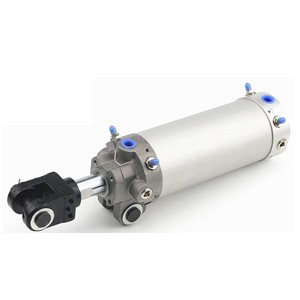

CK1 series clamping cylinder pneumatic
Model name: CK1A hinge ears 16.5mm, CK1B hinge ear 19.5mm
Cylinder bore size mm: 50, 63
Media: air
Operating pressure range: 0.05-1Mpa
Pressure: 1.5Mpa
Temperature range: 5~60℃
Piston speed: 50-500mm/s
Air buffering: both sides of the standard attached
Thread tolerance: JIS grade 2
Current limiting valve: both sides of the standard attached
Mounting fixed type: double hinge ( only this type)
Port size: 1/4
