Description

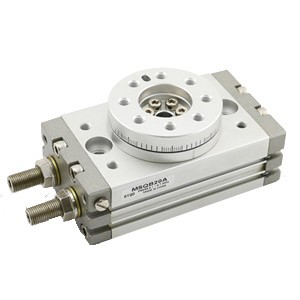

MSQ series small rotary swaying cylinder pneumatic
Cylinder bore size mm: 10,20, 30, 50
Working media: air
Action type: double acting
Angled adjustment screws working pressure range: 1Mpa
With hydraulic buffer max working pressure: 0.6Mpa
Min working pressure: 0.1Mpa
Temperature range: 0~60℃
Buffering: (standard) rubber cushion / (optional) hydraulic shock absorber
Angled adjustment screws allowed power kgf*cm: 0.007-0.081
With hydraulic buffer allowed power kgf*cm: 0.039-0.294
Adjustable angle range: 0-1900
Max swing angle: 1900
Angled adjustment screws stable swing time: 0.2-1.0S/900
With hydraulic buffer stable swing time: 0.2-0.7S/900
Bending torque N.m: 0.89, 1.84, 2.73, 4.64
Port size: M5*0.8, 1/8
