Description

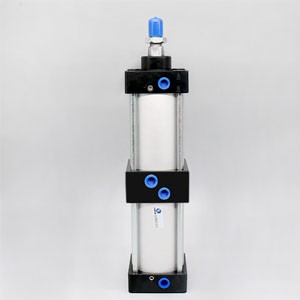

SCT heavy pneumatic cylinder
| Bore diameter（mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action pattern | Double action | ||||||
| Working medium | Air (clean air filtered by 40μm) | ||||||
| Working pressure | 0.1～0.9Mpa(1～9kgf/㎝2) | ||||||
| Guaranteed pressure resistance | 1.35Mpa(13.5kgf/cm2) | ||||||
| Working temperature range | ﹣5～70℃ | ||||||
| Buffer type | Adjustable buffer | ||||||
| Buffer stroke（mm) | 24 | 34 | |||||
| Connect tube diameter | 1/8＂ | 1/4＂ | 3/8＂ | 1/2＂ | |||
| Body material | Aluminum alloy | ||||||
