Description

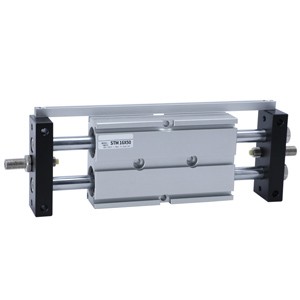

STM series dual joint cylinder pneumatic
Model name: STMB, STMS
Cylinder bore size mm: 10, 16, 20, 25
Cylinder stroke mm: 20, 50, 75, 100, 125, 150, 175, 200, 250
Media: air
Acting mode: double acting
Working pressure range: 0.1-0.9Mpa
Proof pressure: 1.5Mpa
Temperature range: -5~70℃
Working speed: 50-200mm per second
Buffering mode: without or with shock absorber optional
Port size: M5*0.8, PT1/8
