Description

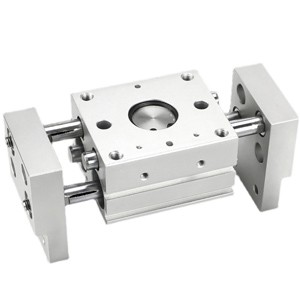

SHINYEE Pneumatic Cylinder MHL2 Air Parallel Wide Finger Pneumatic Double Acting Wide Opening Air Gripper
| Bore size (mm) | 10 | 16 | 20 | 25 | 32 | 40 |
| Fluid | Air | |||||
| Action type | Double acting | |||||
| Minimum operating pressure | 0.15MPa | 0.10MPa | ||||
| Maximum operating pressure | 0.60MPa | |||||
| Ambient and fluid temperature | -10 to 60°C | |||||
| Repeatability | ±0.1mm | |||||
| Retention N | 14 | 45 | 74 | 131 | 228 | 396 |
| Port Size | M5x0.8 | 1/8 | ||||
