Description

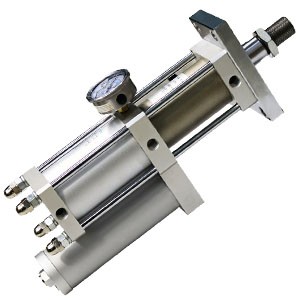

MPT series air and liquid booster cylinder pneumatic

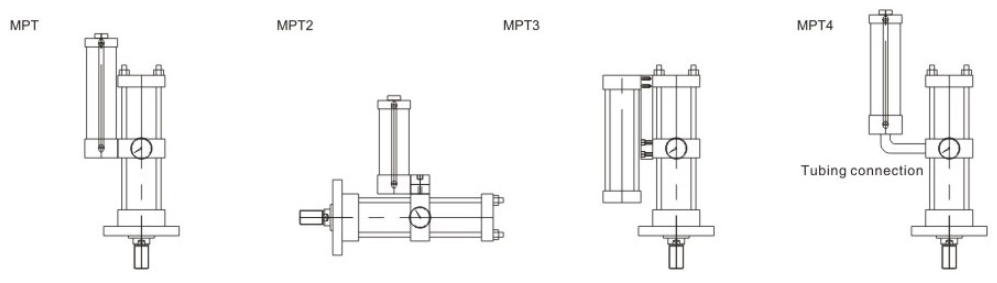

MPT: standard
MPT2: horizontal T mount

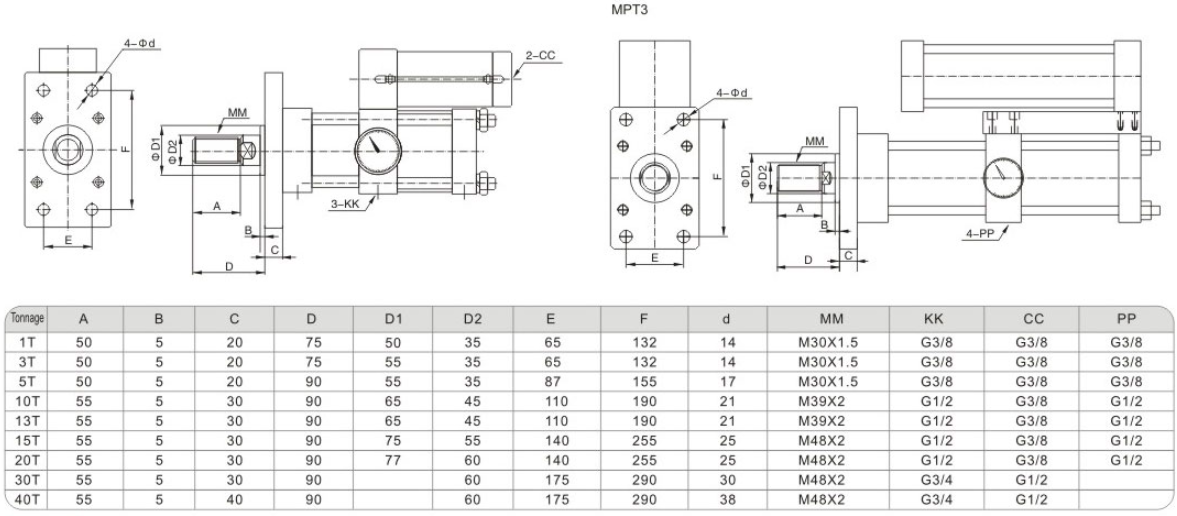

MPT3: oil and gas separation type
MPT4: separate drums
Cylinder bore size mm: 63, 80, 100, 125, 160
Overall stroke mm: 50, 100, 150, 200
Booster stroke mm: 5, 10, 15, 20
Output force Ton: 1, 3, 5, 10, 13, 15, 20, 30, 40
