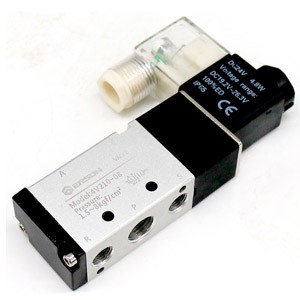

4V2 series solenoid valve pneumatic
conexiones neumáticas
válvulas
electroválvula pilotaje
regulador álvula
válvula reguladora
válvula de 3 posiciones
válvula económica
electroválvula de 5 vías
accionamiento directo válvula
válvula mecánica
válvula manual giro
válvula seguridad manual
válvula de 3 vías
válvula enchufable
Ordering code
| 4V | 2 | 10 | / | 6 | AC110V |
| Specification model | Serial code | Coil and positions | Connect tube size | Voltage | |
| 5 way 2(3) position solenoid valve | 2:200 serial | 10:2/5 single way | 06:1/8" | DC12V | |
| 2 positions | |||||
| 20:2/5 2 head | 08:1/4" | DC24V | |||
| 2 position | |||||
| 30C:3/5 2 head | AC24V50/60Hz | ||||
| 3 position sealed type | |||||
| 30E:3/5 2 head | AC110V50/60Hz | ||||
| 3 position exhaust type | |||||
| 30P:3/5 2 head | AC220V50/60Hz | ||||
| 3 position pressure type | |||||
| AC380V50/60Hz |
Specifications
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-08 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-08 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | ||
| Working medium | Air | ||||||||||
| Action type | Internal pilot | ||||||||||
| Positions | 5 way 2 position | 5 way 3 position | 5 way 2 position | 5 way 3 position | |||||||
| Effective cross-sectional area(mm2) | 14mm2(CV=0.78) | 12mm2(CV=0.40) | 16mm2(CV=0.78) | 12mm2(CV=0.67) | |||||||
| lubricating oil | No need | ||||||||||
| Pressure | 1.5~8.0kgf/cm2 | ||||||||||
| Max pressure resistance | 10.5kgf/cm2 | ||||||||||
| Working temperature | 5~60℃ | ||||||||||
| Voltage range | +/-10% | ||||||||||
| power consumption | AC:1.3W DC:1.5W | ||||||||||
| Insulation | F level | ||||||||||
| Protection level | IP65(DIN40050) | ||||||||||
| Connection type | Direct outlet or terminal type | ||||||||||
| Max operating frequency | 5 times per second | ||||||||||
| Shortest excitation time | 0.05 second | ||||||||||
| Parts material | Body | Aluminum alloy | |||||||||
| Sealing ring | NBR | ||||||||||
