Description

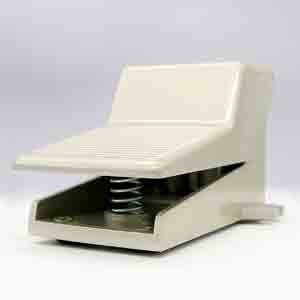

4F210 series foot solenoid valve pneumatic
Ordering Code
4F | / | 210 | / | 08 | L |
Model | 210: Double position 5 way | Port size | L: Self-locking | ||
08:1/4 | G: Protective cover | ||||
LG: Self-locking + protective cover |
Dimensions
Specifications:
Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | |
Working medium | Air | ||||
Working pressure range | 0-8kgf/cm2 | ||||
Working temperature range | 0~70℃ | ||||
Matching tube size | 1/4" | ||||
Ways/Positions | 5/2way | ||||
Body | Zinc alloy | ||||
Main parts material | Sealing ring | NBR | |||
