Description

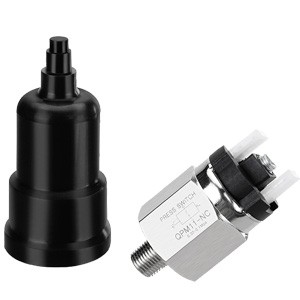

QPM QPF-1 series diaphargm type adjustable pressure switch pneumatic
Model: QPM11-NO, QPM11-NC, QPF-1
Media: Air
Action mode: adjustable pressure type
Installation and connection mode: male thread
Port size: PT1/8
NO: normal open type
NC: normal closed ypte
Working pressure: 0.1 -1Mpa
Working temperature: -5~60℃
Service life: 1,000,000 cycles
Max current: 500mA
Max power: 100VA, 24VA
Insulation voltage: 1500V, 500V
Insulation level: F
Protection level with protective sleeve: IP54
Working voltage: DC24V
