Description

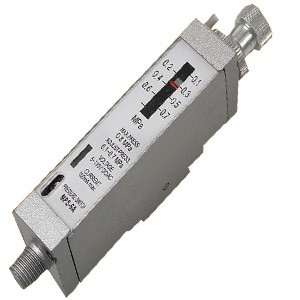

MPS-6A series pressure sensor switch
Connection mode: PT1/8 thread / O type seal ring for connection
Max working pressure: 0.8Mpa
Proof pressure: 1.0Mpa
Pressure setting range: 0.1~0.7Mpa
LED signal output: normal open-when pressure reaches the setting value, LED on
Sensor switch type: normal open, allowable load current 50mA, REC type spring acting type, load voltage range 5-220V DC/AC
Temperature range: -5~60℃
