Description

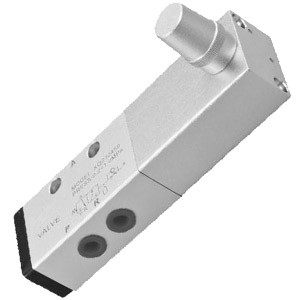

XQ series delay directional valve pneumatic
Model: XQ230450
Working media: Air
Positional: 3/2 port
Port size: G1/8
Port size: 6mm
Timing range: 1~30S
Max working pressure:0.2-1Mpa
Delay error: 8%
Switching period: 30ms
Medium temperature: -10~+60℃
Ambient Temperature: 5-60℃
Mechanical life: 5,000,000 times
