Description
S3-210 series mechanical valve pneumatic
Model: S3B, S3C, S3D, S3Y, S3R, S3L, S3PF, S3PP, S3PM, S3HS, S3PL
Working media: Air
Action mode: direct acting type
Port size: G1/8, G1/4
Temperature range: -5~60℃
Max working pressure: 0.8Mpa
Proof pressure: 1Mpa
S3B: 5/2 port normal type
S3C: 5/2 port long handle type
S3D: 5/2 port short handle type
S3Y: 5/2 port rocker arm type

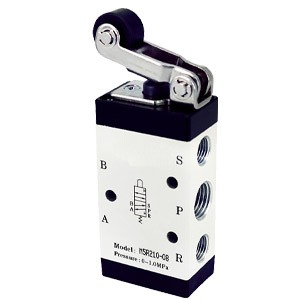

S3R: 5/2 port roller type
S3L: 5/2 port roller with free return type
S3PF: 5/2 port flat button type
S3PP: 5/2 port raised button type
S3PM: 5/2 port mushroom type
S3HS: 5/2 port selection type
S3PL: 5/2 port stop hitting button type
