Description

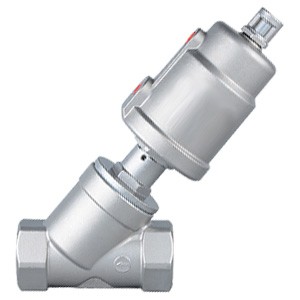

ASV200 series air control pulse valve pneumatic
Model name: ASV200-04, ASV200-06, ASV200-10, ASV200-12, ASV200-14, ASV200-20, ASV200-24
Working media: Water, Oil, Air
Working pressure: 0-1.6Mpa
Proof pressure: 2.4Mpa
Max pressure: 1.6Mpa
Medium temperature range: -10~180℃
Ambient temperature range: -10~60℃
Working pressure of control valve: 0.16Mpa, 0.2Mpa, 0.39Mpa
Port diameter mm2: 15, 20, 25, 32, 40, 50, 65
CV value: 7.38, 11.46, 27.28, 44.69, 69.83, 109, 184.4
Port size: G1/2, G3/4, G1, G1-1/4, G1-1/2, G2, G2-1/2
