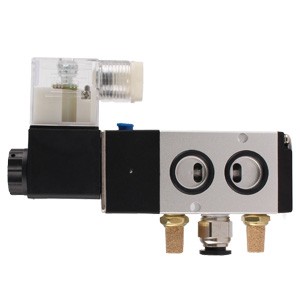

4M series solenoid valve pneumatic
| Model | 4M110-M5 | 4M110-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 | 4M410-15 |
| 4M120-M5 | 4M120-06 | 4M220-06 | 4M220-08 | 4M320-08 | 4M320-10 | 4M420-15 | |
| Working Media | Air | ||||||
| Action Mode | Internal Pilot Type | ||||||
| Position | 5/2Post | ||||||
| Lubrication | No Need | ||||||
| Working Pressire | 0.15~0.8Mpa | ||||||
| Proof Pressure | 1.0Mpa | ||||||
| Working Temperature | 0~60℃ | ||||||
| Voltage Range | ±10% | ||||||
| Power Consumption | AC:2.8VA DC:2.8W | AC:5.5VA DC:4.8W | |||||
| Insulation Grade | F Level | ||||||
| Protection Class | IP65(DIN40050) | ||||||
| Connecting Type | Terminal type | ||||||
| Max.Operating Frequency | 5Cycle/Sec | ||||||
| Min.Excitation Time | 0.05Sec | ||||||
| Material | Body | Aluminum Alloy | |||||
| Seal | NBR | ||||||
| Model | 4M110-M5 | 4M110-06 | 4M210-06 |
| 4M120-M5 | 4M120-06 | 4M220-06 | |
| Effective Sectional Area | 5.5mm^2(Cv=0.31) | 12.0mm^2(Cv=0.67) | 14.0mm^2(Cv=0.78) |
| Port Size | Input=Output=Exhaust Port=G1/8 | Input=Output=G1/8 | Input=G1/4Output=G1/8 |
| 4M | 2 | 10 | 8 | A |
| Model | series | valve type | Port size | Voltage |
| 4V:5/2 way or 5/3 way | 2:200 series | 10:Single solenoid | 08:PT1/4" | A: AC220V |
| 4A:5/2 way or 5/3 way | 1:100 series | 20:double solenoid | 06:PT1/8" | B:DC24V |
| 3V:3/2 Way | 3:300 series | 10:PT3/8" | C:AC110V | |
| 3A:3/2 Way | M5:M5 | E:AC24V | ||
| 4M:5/2 Way | F:DC12V |
| Model | 4M110-M5 | 4M110-06 | 4M210-06 |
| 4M120-M5 | 4M120-06 | 4M220-06 | |
| Effective Sectional Area | 5.5mm^2(Cv=0.31) | 12.0mm^2(Cv=0.67) | 14.0mm^2(Cv=0.78) |
| Port Size | Input=Output=Exhaust Port=G1/8 | Input=Output=G1/8 | Input=G1/4Output=G1/8 |
| Model | 4M210-08 | 4M310-08 | 4M310-10 | 4M410-15 |
| 4M220-08 | 4M320-08 | 4M320-10 | 4M420-15 | |
| Effective Sectional Area | 16.0mm^2(Cv=0.89) | 25.0mm^2(Cv=1.40) | 30.0mm^2(Cv=1.68) | 50.0mm^2(Cv=2.79) |
| Port Size | Input=Output=G1/4 | Input=G3/8Output=G1/4 | Input=G3/8,Exhaust Port=G1/4 | Input=Output=G1/2 |
