Description

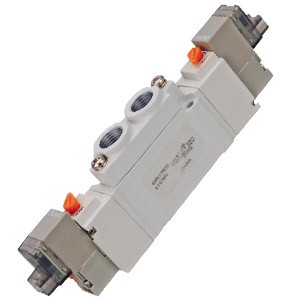

SZ series pilot solenoid valve pneumatic
Model: SZ3000, SZ5000, SZ7000, SZ9000
Working media: Air
Internal pilot two position single type working pressure range MPa: 0.15-0.7
Internal pilot two position double type working pressure range MPa: 0.1-0.7
Internal pilot three position single type working pressure range MPa: 0.2-0.7
Temperature: -10~50℃(No Frozen)
Two position single/double type max operating frequency Hz: 5, 10
Three position type max operating frequency Hz: 3
Two position single type response time(ms): ≤12, ≤19, ≤31, ≤35
Three position response time(ms): ≤15, ≤32, ≤50, ≤62
Exhaust mode: main valve and pilot valve exhaust type
Impact resistance / Vibration resistance value m/s2: 150/30
