Description

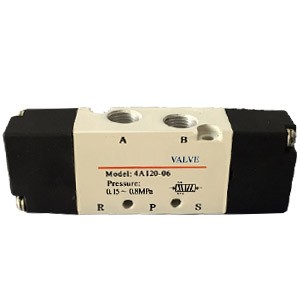

4A1 series air control pulse valve pneumatic
Model: 4A110, 4A120, 4A130C, 4A130E, 4A130P
Media: Air
Action mode: Exterior control
Position: 5/2 port, 5/3 port
10: single coil double position
20: Double coil double position
30C: Double coil three position closed type
30E: Double coil three position exhaust type
30P: Double coil three position pressurized type
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Effective sectional area: 5mm2(Cv=0.28), 5.5mm2(Cv-0.31), 12mm2(Cv=0.67), 9mm2(Cv=0.5)
Valve port size: input=output=exhaust port=M5*0.8, input=output=exhaust port=G1/8
Max operating frequency: 3 Cycle and 5 cycle per second
