Description

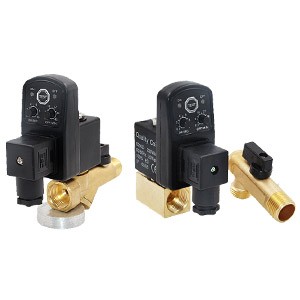

OPT-A OPT-B electronic drain valve pneumatic
Timer: OPT-A, OPT-B
Interval time OFF: 0.5-45 mins
Discharge time ON.: 0.5-10 seconds
Manual test button: micro switch
Power supply: 24-240V AC/DC; AC380V can be customized
Current consumption: max 4mA
Temperature: -40~+60℃
Protection level: IP65
Cover material: flame retardant ABS plastic
Electrical connection: DIN43650A
Indicator: LED indicator on/off
Valve: OPT-A, OPT-B
Type: 2/2 port direct acting solenoid valve
OPT-A port size: G1/2
OPT-B port size: input G1/2 male thread, output G1/2 female thread
Max working pressure: 1Mpa
Ambient temperature range: 2-55℃
Highest medium temperature: 90℃
OPT-A valve body: brass or stainless steel
OPT-B valve body: brass
Insulation level: H
Protection level: IP65
Voltage: DC24V, AC220V
Voltage range: +/-10%
