Description

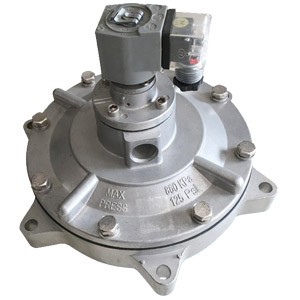

DMF-Y series Inundated electromagnetic pulse valve pneumatic
Model: DMF-Y-25P, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S
Working media: Air
Port size: G1, G1-1/2, G2, G2-1/2, G2-1/4
Inside nominal diameter mm2: 25, 40, 50, 62, 76
Max working pressure: 0.3-0.8Mpa
Proof pressure: 1Mpa
Temperature: -5~60℃
Relative temperature: ≤80%
Rated voltage: AC110V, AC220V, DC24V
Membrane service life: 1,000,000 times
Coil power: 20VA
