Description

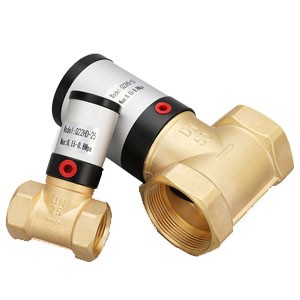

Q22HD series air control pulse valve pneumatic
Model: Q22HD-15, Q22HD-20, Q22HD-25, Q22HD-35, Q22HD-40, Q22HD-50
Working media: Air, water, oil, liquefied gas, low viscosity fluid
Port size: G1/2, G3/4, G1, G1-1/4, G1-1/2, G2
Working pressure: 0.2-0.8Mpa
Proof pressure: 1Mpa
Temperature range: 5-50℃
Flow coefficient KV: 4, 5, 10, 25, 40
