Description

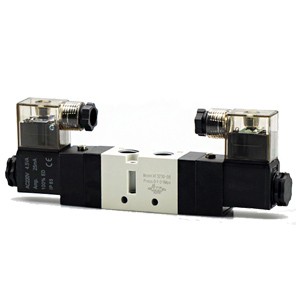

VF series solenoid valve pneumatic
Model: VF3130-02, VF3230-02, VF3330-02, VF3430-02, VF3530-02
130: single coil double position
230: double coil double position
G: wiring type
D: plug type
B: manual operation
Media: Air
Action mode: internal pilot type
Effective sectional area: 16mm2(Cv=0.89), 12mm2(Cv=0.67)
Port size: input=output=1/4, exhaust port=PT1/8
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0~60℃
Voltage range: +/-10%
Power consumption: AC 5.5VA, DC 4.8W
Insulation level: F
Protection level with protective sleeve: IP65
Max operating frequency: 5 cycle per second
Min excitation time: 0.05 second
Working voltage: DC12V, DC24V, AC110V, AC220V
