Description

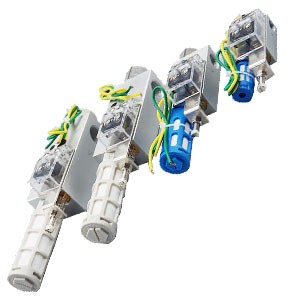

SCV CCV series vacuum generator pneumatic
Model: SCV-05, SCV-10, CCV-10, SCV-15, CCV-15, SCV-20, CCV-20, SCV-25, SCV-30
SCV: standard type
CCV: pipe type
Working media: Air
Port size: G1/8, Φ6, G1/4, Φ8, G3/8, G1/2
Nozzle diameter Φ: 0.5, 1, 1.5, 2, 2.5, 3
Vacuum type: Nil standard type, LS low vacuum high flow rate type, HR low pressure high vacuum type
Working pressure: 0.2-0.8Mpa
Proof pressure: 1Mpa
Temperature range: -5~60℃
Voltage / current: AC 125, 5A / AC 250V,3A
Mass (g): 72, 136, 271, 710
Working pressure: 0.5Mpa
Air consumption L/min: 13, 44, 100, 180, 265, 385
Vacuum pressure KPa: -88
Vacuum suction volume L/min: 6, 27, 63, 110, 160, 225
