Description

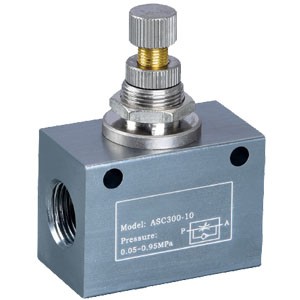

ASC series flow control valve pneumatic
Model name: ASC100-M5, ASC100-06, ASC200-08, ASC300-10, ASC300-15
Working media: Air
Max working range: 0.9Mpa
Proof pressure: 1.5Mpa
Working temperature range: -5~60℃
Port size: M5, G1/8, G1/4, G3/8, G1/2
Standard quota flow throttle valve L/min: 200, 450, 1250, 1650
Standard quota flow non return valve L/min: 400, 800, 1500, 2500
