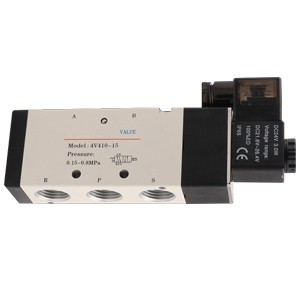

4V4 series solenoid valve pneumatic
Ordering code
| 4V | 4 | 10 | 15 | B | AC220V | H |
| Model | Series | Series code | Connect tube size | Connect tube type | Voltage | Structure type |
| 4V:2(3) potition 5 port solenoid valve | 400 series | 10:single head double position | 15:1/2" | Blank:Tube connection | DC12V DC24V | Blank: spring reset |
| 4A:2(3) potition 5 port air valve | 20:double head double position | B:2-position 5-way board connection 3-position 5-way board connection | AC24V 50Hz/60Hz | H:Rear piston reset | ||
| 3V:2 potition 5 port solenoid valve | 30C:Two-head three-position closed type | AC110V 50Hz/60Hz | ||||
| 3A:2 potition 5 port air valve | 30E:Two-head three-position exhaust type | NC:2-position 3-way normally closed type | AC220V 50Hz/60Hz | |||
| 30P:Double-head three-position pressure type | NO:2-position 3-way normally open type | AC380V 50Hz/60Hz |
| Model | 4V410-M15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 |
| 4A410-M15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A430P-15 | |
| Number of positions | 2-position 5-way | 3-position 5-way | |||
| Effective cross-sectional area | 50mm²(CV=2.79) | 30mm²(CV=1.68) | |||
| Model | 3V410-15 | 3V420-15 | 3A410-15 | 3A420-15 | |
| Number of positions | 2-position 5-way | ||||
| Effective cross-sectional area | 50MM²(CV=2.79) | ||||
| Connect tube size | Inlet = Outlet = Exhaust=G1/2" | ||||
| Working medium | Air | ||||
| Action type | Internal pilot | ||||
| Working pressure | 0.15~0.8Mpa | ||||
| Max pressure resistance | 1.2Mpa | ||||
| Working temperature | 5~50℃ | ||||
| Voltage range | ±10% | ||||
| power consumption | AC:5.5VA DC:4.8W | ||||
| Insulation / Protection level | F level IP65 | ||||
| Connection type | Direct outlet or segment type | ||||
| Max operating frequency | 5 times per second | ||||
| Shortest excitation time | 0.05 seconds | ||||
