Description

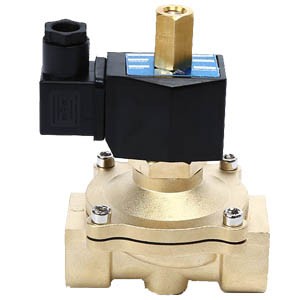

2WK series solenoid valve pneumatic
Model: 2WK025-08, 2WK040-10, 2WK160-15, 2WK200-20, 2WK250-25, 2WK350-35, 2WK400-40, 2WK500-50
Media: water,air,steam
Action mode: direct acting / pilot operated type
Working pressure: 0-0.7Mpa
Proof pressure: 1Mpa
Working temperature: -5 to +85℃
Valve port size: G1/4, G3/8, G1/2, G3/4, G1, G1-1/4, G1-1/2, G2
CV value: 0.23, 4.8, 7.6, 12, 24, 29, 48
Valve port diameter mm2: 2.5, 16, 20, 25, 35, 40, 50
Coil power: 20VA
Working voltage: DC12V,DC24V,AC24V,AC110V,AC220V,AC380V
Working voltage range: +/-10%
