Description

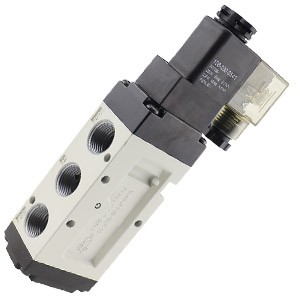

VF5000 series solenoid valve pneumatic
Model: VF5120-03, VF5220-03, VF5320-03, VF5420-03, VF5520-03
120: single coil double position
220: double coil double position
3: AC110V
4: AC220V
5: DC24V
6: DC12V
G: wiring type
D: plug type
Media: Air
Action mode: internal pilot type
Effective sectional area: 18mm2(Cv=1), 25mm2(Cv=1.4)
Port size: input=output=exhaust port=PT3/8
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0~60℃
Voltage range: +/-10%
Power consumption: AC 5.5VA, DC 4.8W
Insulation level: F
Protection level with protective sleeve: IP65
Max operating frequency: 5 cycle per second
Min excitation time: 0.05 second
Working voltage: DC12V, DC24V, AC110V, AC220V
