Description

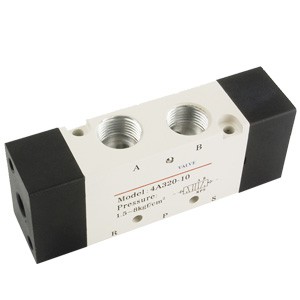

4A3 series air control pulse valve pneumatic
Model: 4A310, 4A320, 4A330C, 4A330E, 4A330P
Media: Air
Action mode: Exterior control
Position: 5/2 port, 5/3 port
10: single coil double position
20: Double coil double position
30C: Double coil three position closed type
30E: Double coil three position exhaust type
30P: Double coil three position pressurized type
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Effective sectional area: 18mm2(Cv=1.0), 25mm2(Cv=1.40), 30 mm2(Cv=1.68)
Valve port size: input=output=G3/8, exhaust port=G1/4, input=output=exhaust port=G1/4
Max operating frequency: 3 Cycle and 5 cycle per second
